Demister Filtration with Odor Reduction Systems

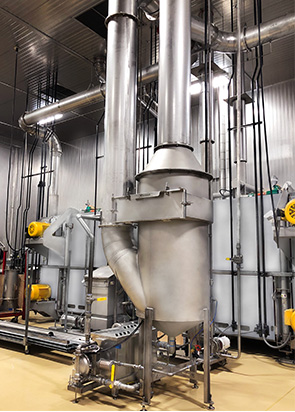

To eliminate oil or grease buildup on your roof, our Demister System uses a three-stage process for filtration including velocity reduction and centrifugal separation, water spray scrubbing and demister pad filtration. First, the air is discharged tangentially down into a larger vessel resulting in lower air speeds, which cause the larger particles to fall out of the exhaust air. The exhaust air is then forced to turn up through the demister vessel, which causes more grease to fall out against the vessel sides and bottom. Second, we use water spray showers in the demister vessel body to “scrub” the airflow of grease and oil. Finally, we have incorporated a specially designed demister filter to capture as much of the remaining grease and oil as possible. There are no moving components in the demister vessel and the filtered material is continuously washed from the vessel by the water flow. These units are self-cleaning and have no moving parts in the air stream. In addition, we can add carbon filter housings to reduce odor emissions.

Specifications

1Weather Enclosure

Encloses the motor and blower assembly to protect from the weather elements, ships assembled with the blower
Solid floor with angle base, carbon steel construction with air inlet top
Access doors for electrical maintenance and manual damper adjustment
Acoustic lining available to reduce noise

2Pressure Blower

Located on the roof for noise reduction and floor space savings
The blower will never come in contact with the exhaust stream, so it is more reliable and typically will not have to be cleaned

3Venturi Exhauster

Superior design and precision manufacturing make the Quickdraft Venturi Exhauster the most efficient, consistent and reliable method for maintaining process exhaust requirements.

No obstructions to the exhaust flow and all moving parts are external to the air stream
Little or no maintenance
Consistent, dependable exhaust performance
Duct can be thoroughly cleaned without harming the blower
Designed for 24/7 operation
Long service life

4Exhaust Filtration & Odor Reduction

Carbon Filters

Removes odor from the discharge
Uses a mixture of activated carbon and potassium permanganate
Filter media is contained in several “trays” that slide into the housing
Trays are arranged in a chevron pattern to increase effective surface area
Access doors allow the media to be easily replaced

Demister Filter

A three-stage process is used to remove grease, oil and particulate from the exhaust air stream
– Knockdown and Velocity Reduction are used to slow the exhaust air stream and allow larger particles to fall out of the exhaust flow
– Water spray showers located at optimum locations are used to “scrub” the airflow of grease, oil and particulates
– A specially designed series of Demister filter pads capture as much of the remaining grease, oil and particulates as possible.
Filters are heat-resistant, woven-poly material several inches thick
Frames allow the cleaning crew to easily remove and reinstall for cleaning
Filters are made from various materials based on the maximum temperature of the exhaust

5Water Recirculation

Significantly reduces water consumption in the Demister Filtration System
Provides required flow for maximum filtration efficiency
Includes pressure regulator and gauge for flow adjustment
Automatically skims grease to separate drain
Automatically introduces make-up water to the sump
Stainless steel construction with a washdown duty motor

6Oven/Fryer/Microwave

Quickdraft works closely with many manufacturers who supply ovens, fryers, blanchers, washers, mixers, etc., for the food industry. Our systems are designed for the manufacturer’s recommended exhaust flow and exhaust temperature for your process.

Features and Benefits:

No moving components, easy to maintain
Three-stage filtration:
- – Centrifugal
- – Wet scrubber
- – Demister pad filter
100% efficient for particles 5 micron or greater
96% efficient for 3 micron particulate
70% efficient for 2 micron particulate
All stainless-steel construction
Water recirculation reduces water consumption and operating costs
